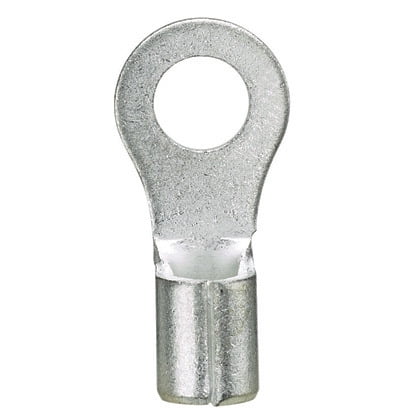

Ring Terminal, 1/4 in Stud Size, 10 AWG, 2,000 V, Bare Insulated, Bare, Crimp Termination Only

Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 2,000 V, Minimum Wire Size 14 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.52 in, Contact Finish Tin, Contact Material Copper, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Inside Diameter 0.13 in, Barrel Outside Diameter 0.22 in, Barrel Size Standard, Barrel Style Brazed Serrated

• Connection Material:Copper
• Connection Type:Crimp
• Contact Finish:Tin
• Contact Material:Copper
• Environmentally Friendly:Yes
• Features:Brazed Seam
• For Use With:CT-100, CT-200, CT-1570, CT-1701, CT-2300/ST (CD-550), CT-2500/L (CT-2570CH), & UP14ZLW (CD-570)
• Green Environmental Attribute:Does Not Contain PVC
• Hole Diameter:0.27 in
• Max. Temp.:302 Degrees F
• Maximum Copper Conductor Size (AWG):#10
• Maximum Metric Conductor Size (mm²):6
• Maximum Metric Conductor Size (mm²):6
• Maximum Operating Temperature:302 Degrees F
• Outer Diameter (In.):0.22
• Outer Diameter (mm):5.6
• Overall Length (In.):0.96
• Overall Length (mm):24.4
• Overall Length:0.96 in
• Overall Width (In.):0.52
• Overall Width (mm):13.2
• Ring Width Ranges:0.51 - 0.75 inches
• Terminal Connection:
• Tongue Thickness (In.):0.04
• Tongue Thickness (mm):1
• Tongue Thickness:0.04 in
• Tongue Width - Wire Connector:0.52 in
• Tongue Width (In.):0.52
• Tongue Width (mm):13.2
• Tongue Width:0.52 in
• Width:0.5"
• Wire Range:14 to 10 AWG
• Wire Strip Length (In.):11933
• Wire Strip Length (mm):7.1
