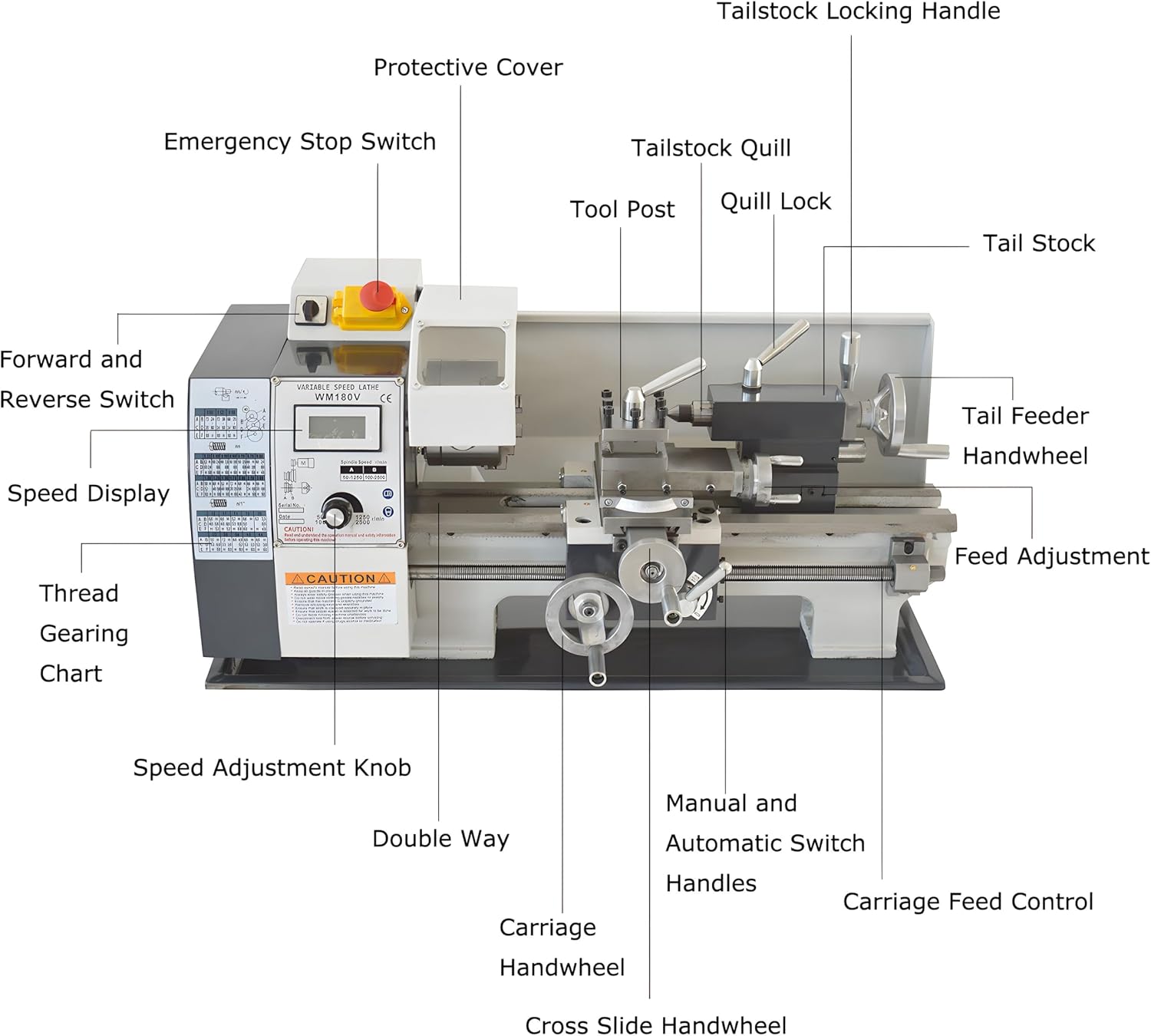

110V 600W 7"x12" Precision Mini Teaching Metal Lathe WM180V 10-44T.P.I Inch Thread Metal Bench Lathe

Product Parameters:Model: WM180VMotor: 110V brushless motorVoltage: AC110V 50/60HzPower: 600WLength of center: 11.8"(300mm)Swing Over Bed: 7"(180mm)Spindle bore: 0.83"(21mm)Diameter of chuck: 3.94"(100mm)Width of lathe bed: 3.94"(100mm)Number of Spindle Speeds: Infinitely variable speedsSpindle taper: MT3Knife rest labour: Horizontal four-stationSpindle rotation speed: 50-2500rpmRange of metric threads: 0.3-3mmRange of Inch Threads(optional accessory ): 10-44T.P.IPrecision of the spindle: 0.01mmRange of Longitudinal Feeds: 0.08mm-0.16mmAutomatic feed range: 0.1mm-0.2mmTowing trip: 1.97"(50mm)Cross Slide Travel: 2.95"(75mm)Tailstock Quill Travel: 2.36"(60mm)Tail frame taper: MT2Item Included:WM180V lathe *1Chuck Jaw *3Gear *7(30/48/50/52/60/66/70)The Screwdriver *2Open spanner *2Hexagon Wrench *5Oil can *1The Fuse *1Chuck Spanner *1English manual *1

• 【Speed Adjustment】The spindle rotation speed is adjustable in the range of 50-2500rpm. It's suitable for both metric and inch threads, which can be achieved by replacing metal gears.
• 【Metal Gear】This mini metal lathe is equipped with metal gear of wear resistance and accurate tansmission. It improves the service life of the lathe greatly.
• 【Spindle Hole】This metal lathe is equipped with 0.83" large spindle through hole. The spindle bore is lengthened to 21mm, which can process longer materials.
• 【Safety Switch】This mini metal lathe has the emergency stop switch. It can stop immediately if there is something wrong during operation, which can keep the operator from being hurt.
• 【Multifunction】This mini metal lathe can be applied for metal turning, screw threading, internal and external thread, wood turning, turning and polishing and so on.
